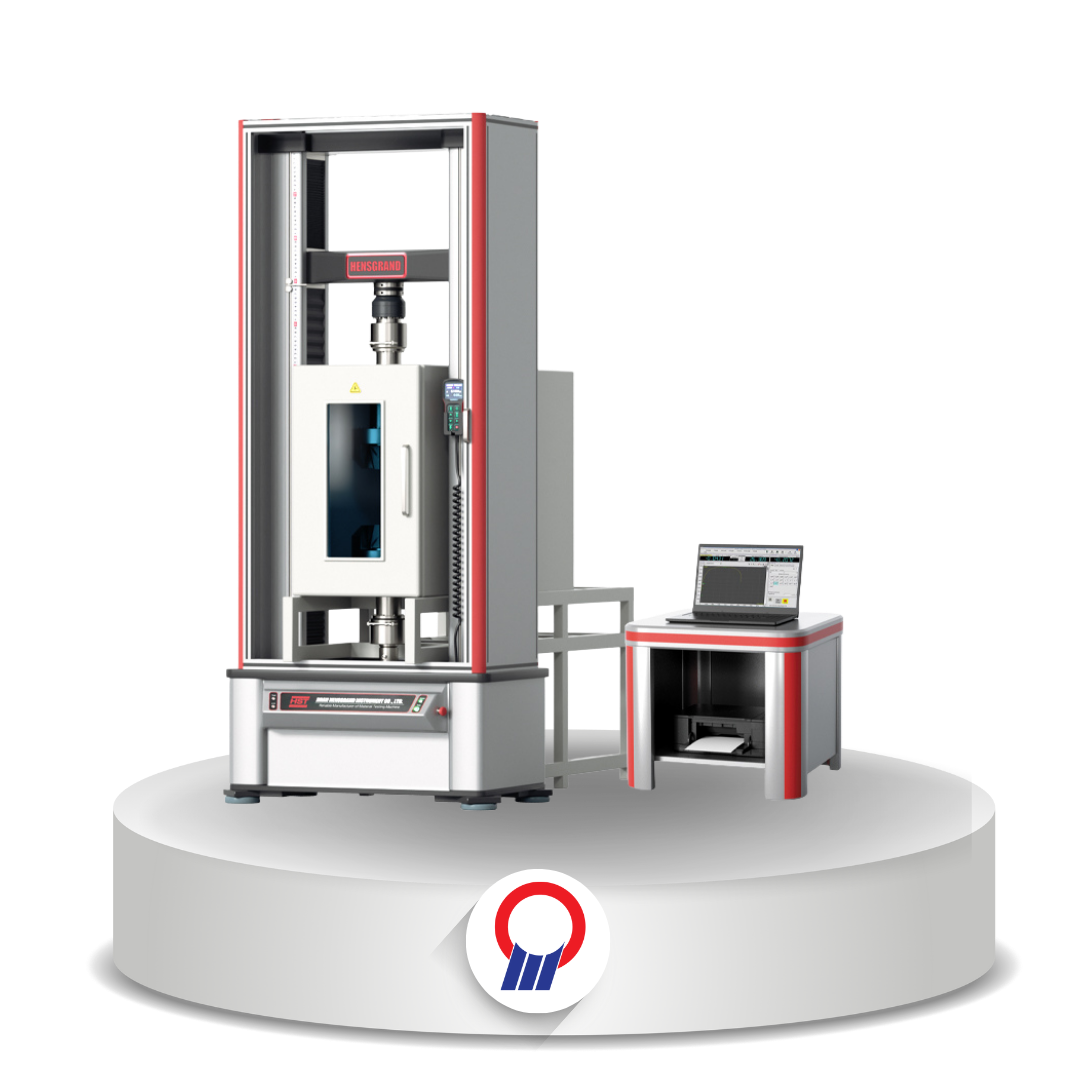

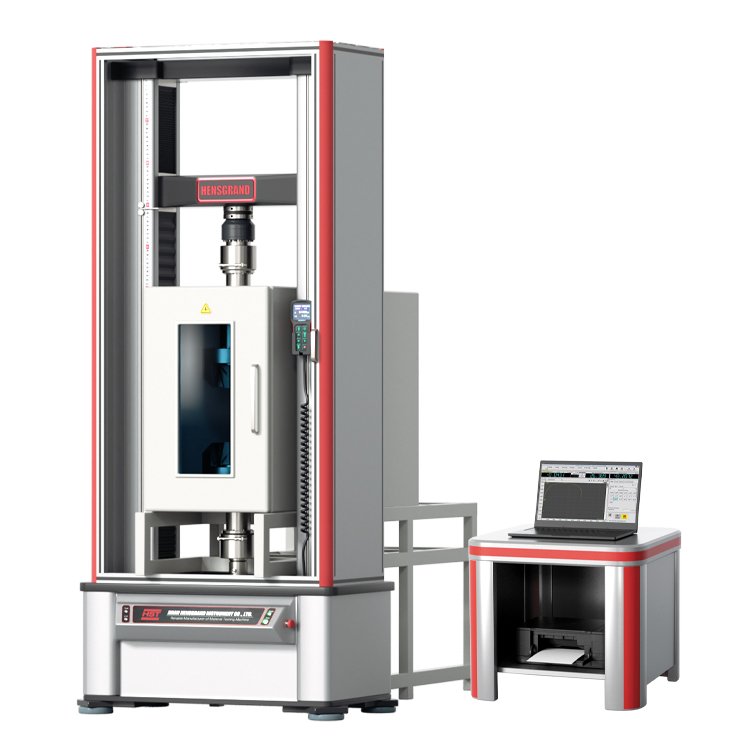

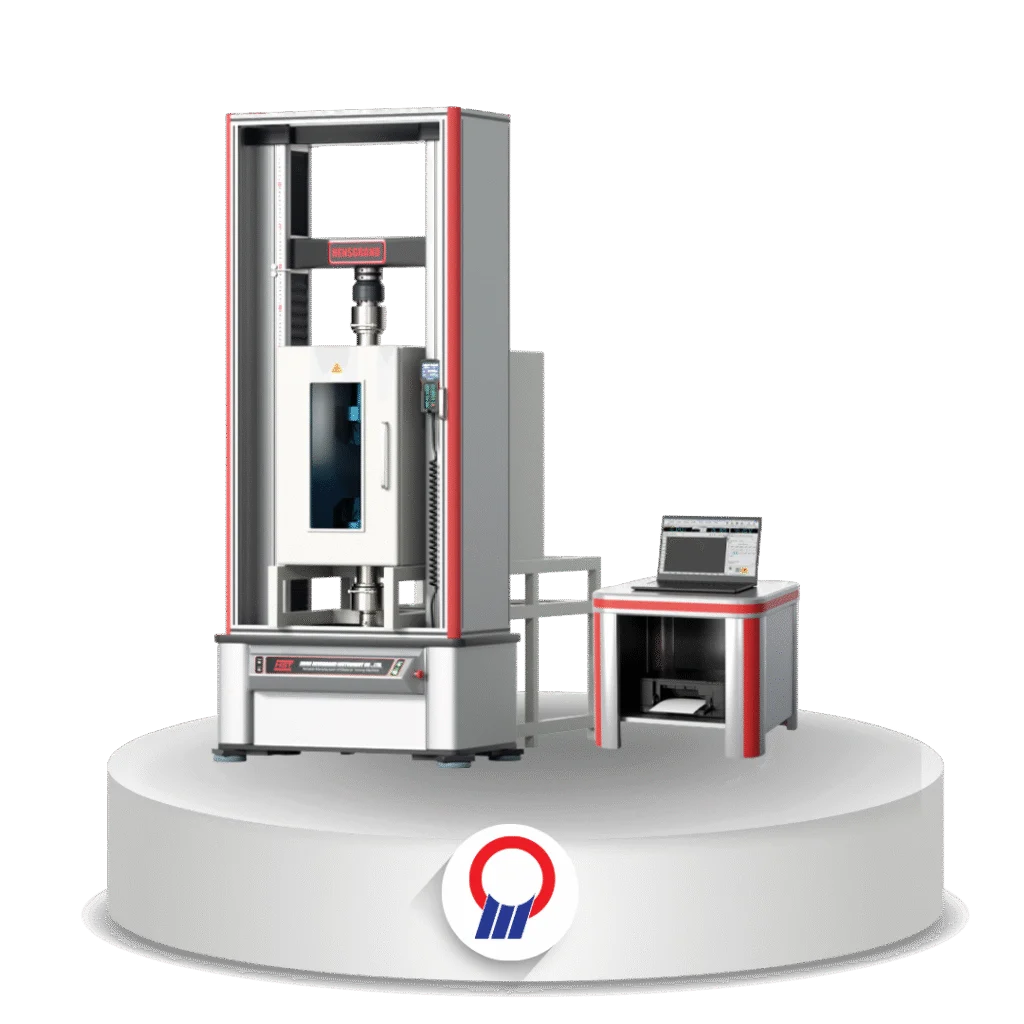

Composite material testing machine

Overview

Mesin uji material komposit HSTWDW-100E/200E/300E (100–300 kN) mencakup lebih dari 115 standar dan 21 jenis uji untuk komposit.

Kapasitas 100, 200, dan 300 kN pada suhu ruang atau −60 sampai +350°C
Mencakup minimal 21 jenis uji (tarik, FHT, OHT, kompresi end-loading, FHC, OHC, CAI, geser Iosipescu, V-notch, IPS, SBS, ILSS, lentur 3 dan 4 titik, mekanika patah)
Sistem koneksi modular untuk aksesori HST
Kelas akurasi ±0,5%, rentang gaya 0,4–100% FS, resolusi 1/500.000 FS
Kecepatan 0,001–500 mm/menit; langkah 1.100 mm; ruang tarik/tekan 630 mm
Servo AC Delta (Taiwan), reducer BEITTO (Jepang), load cell presisi tinggi (USA)

Tanya via WhatsApp

Specification	Value
Specification
Models	HSTWDW-100E, HSTWDW-200E, HSTWDW-300E
Load Capacity	100 kN, 200 kN, 300 kN
Meets Standard	ASTM E-4
Testing Load Accuracy	±0.5%
Testing Load Range	0.4% – 100% FS
Load Resolution	1/500,000 FS
Deformation Measuring Range	0.2% – 100% FS
Deformation Accuracy	≤ ±0.5%
Deformation Adjustment Range	0.02 ~ 100% FS
Displacement Resolution	0.04 µm
Crosshead Speed Range	0.001 – 500 mm/min
Crosshead Speed Accuracy	±0.5% of set speed
Testing Space (Crosshead Travel)	1100 mm
Max. Tensile Testing Space	630 mm
Max. Compression Testing Space	630 mm
Test Width	600 mm
Compression Platen	Φ100 mm
Load Cell	High-precision USA load cell
Motor	Taiwan DELTA AC servo speed control system
Reducer Gear	Japan BEITTO
Position Limit Switch	Upper and lower lights
Power Supply	AC 380V ±10%, 50Hz/60Hz; 2.5 kW, 3-phase AC 220V ±10%, 50Hz/60Hz (as listed)
Overall Dimensions (L x W x H)	1108 x 798 x 2430 mm
Weight	About 1800 kg
Standards	ASTM D3379, D638, D695, D5379, D3039, D3410, D6641, D4255, D7078, D3518, D2344, D7264, C393, C297, C365, D7137; AITM 1.008, 1.007; ISO 14126-B2; ISO 527-4
