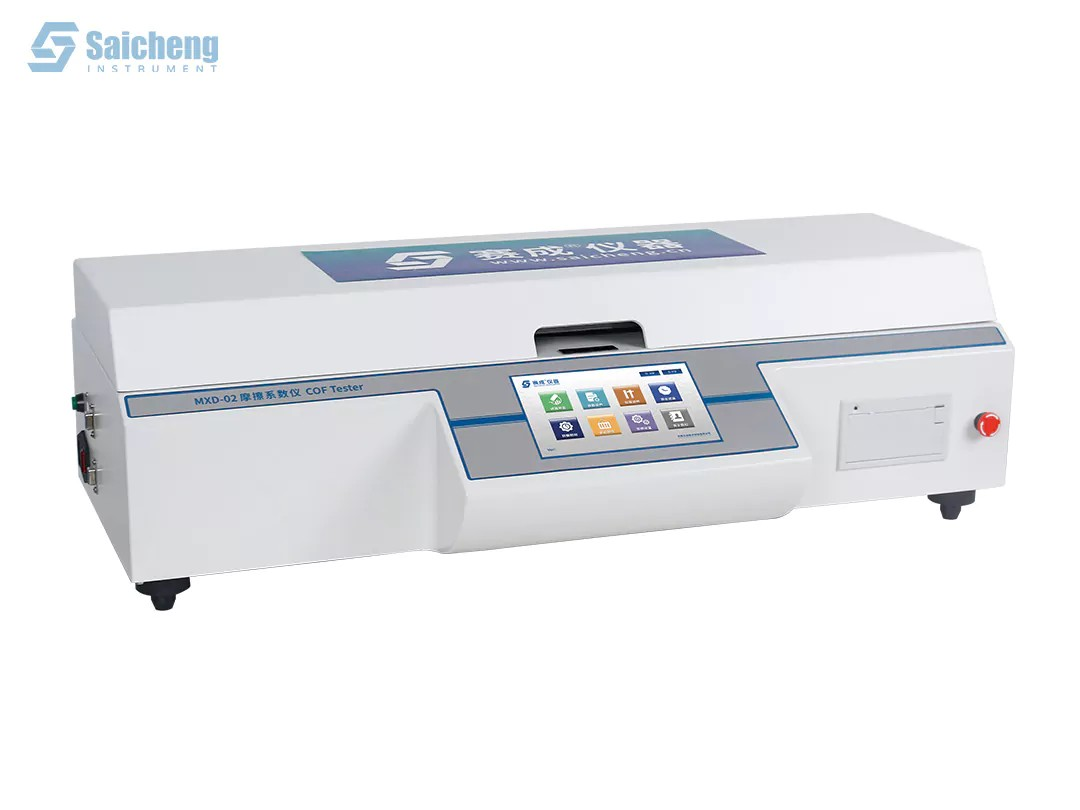

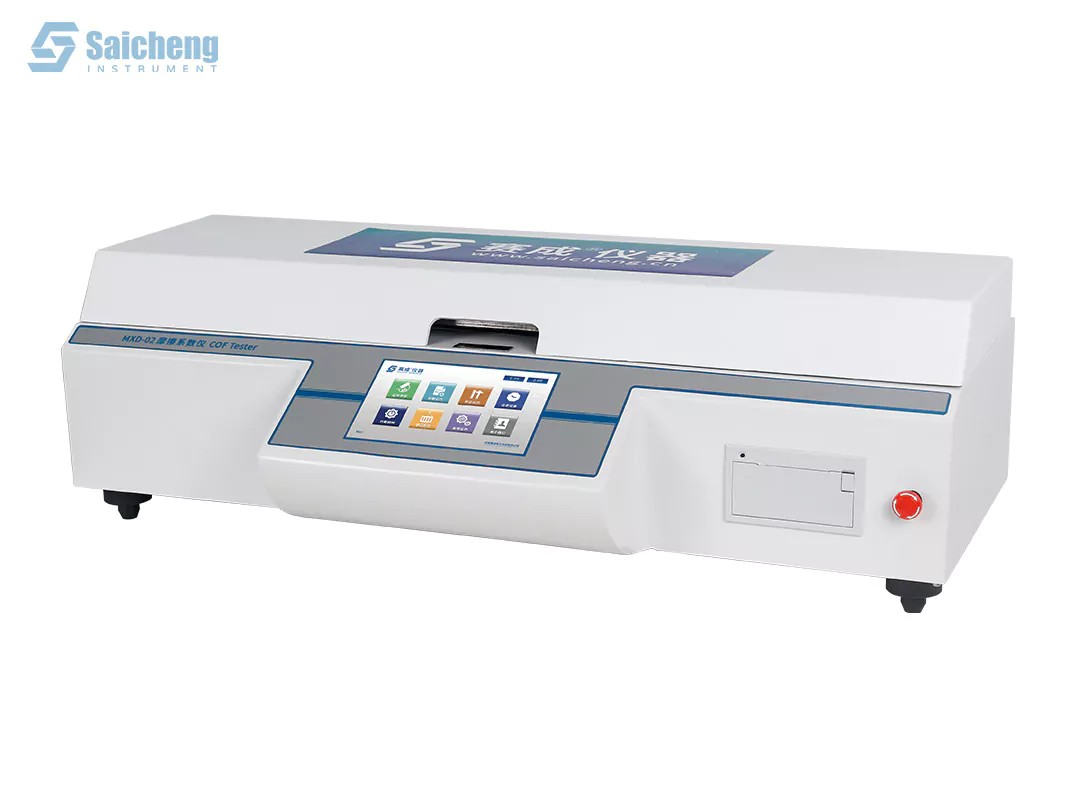

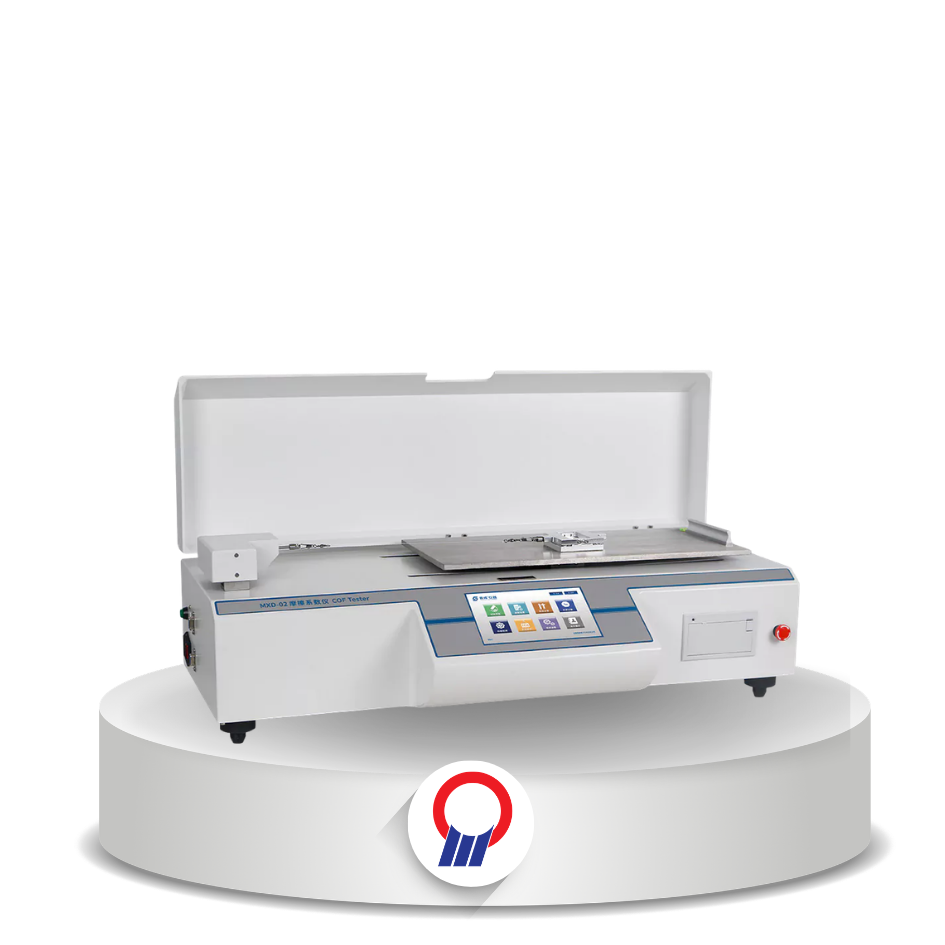

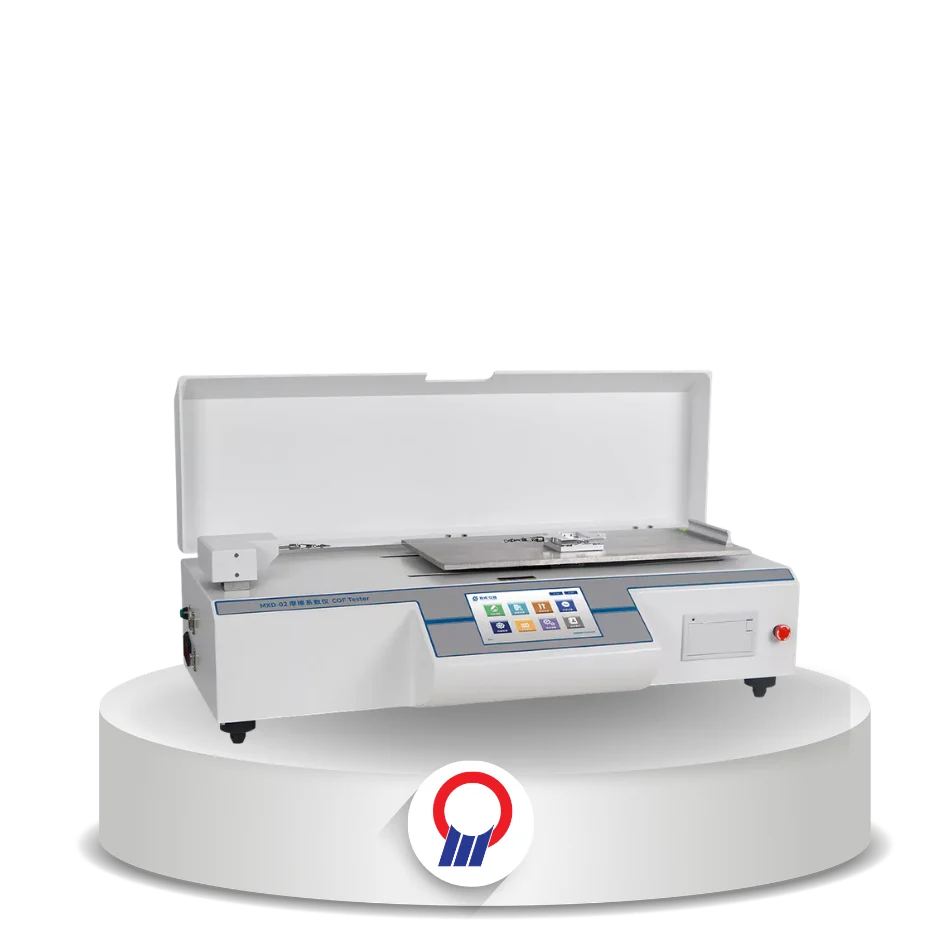

Coefficient Friction Tester MXD-02
Saicheng

Coefficient Friction Tester MXD-02

Overview

Alat uji koefisien gesek statis dan kinetis untuk film plastik, lembaran plastik, kertas, karton, karet, tekstil, logam, laminasi, dan bahan sejenis.

Fitur Utama

  • Kapasitas 0–5 N (standar); 10 N dan 30 N opsional, akurasi 0,5% FS
  • Langkah 400 mm dan kecepatan 0–800 mm/menit dapat diatur
  • Tiga mode: statis, kinetis, atau keduanya; massa sled 200 g dan 500 g standar
  • Meja dan blok geser dihilangkan magnetnya untuk mengurangi kesalahan
  • Layar sentuh warna 7 inci dengan kurva gaya real-time
  • Perawatan rendah: interval kalibrasi 12 bulan
Tanya via WhatsApp
Merk
Saicheng
Kategori
Surface & Handling Tester

Detail Produk

Specification Value
Specification
Capacity Range 0 ~ 5 N (standard); 10 N, 30 N (optional)
Accuracy 0.5% FS
Stroke 400 mm
Mass of Sled 200 g, 500 g (standard); sled can be customized
Test Speed 0 ~ 800 mm/min
Instrument Dimension 800 mm (W) x 390 mm (D) x 260 mm (H)
Power Supply 120 VAC 60 Hz / 220 VAC 50 Hz (can be changed to local requirement)
Net Weight 25 kg
Test Standards ISO 8295, ASTM D1894, TAPPI T816, GB/T 10006
Configuration
Standard Instrument, micro printer, 200 g and 500 g sleds
Optional Professional software, USB communication cable, 1000 g sled, non-standard sled
