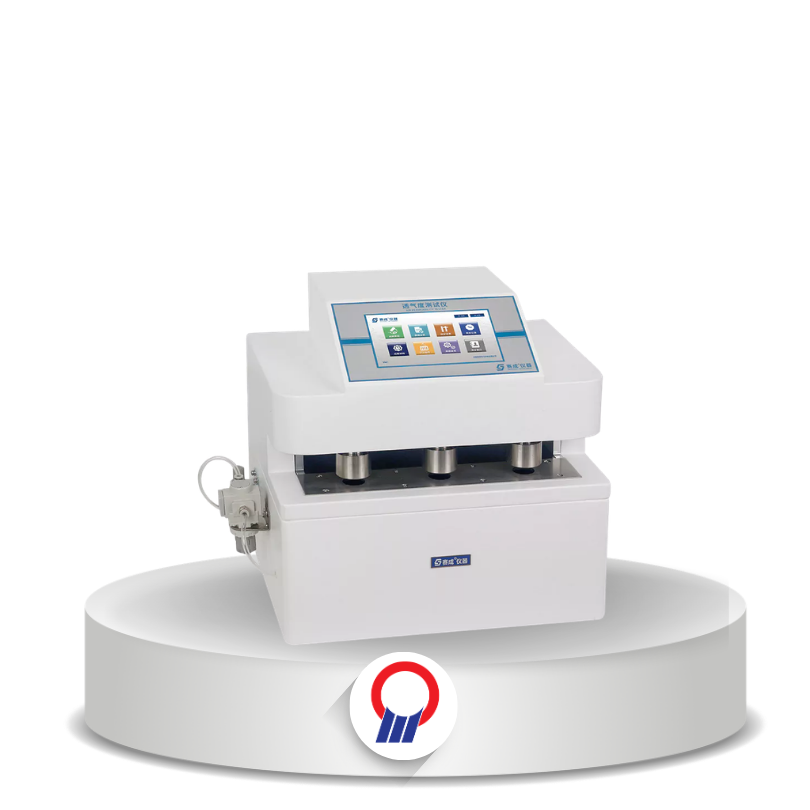

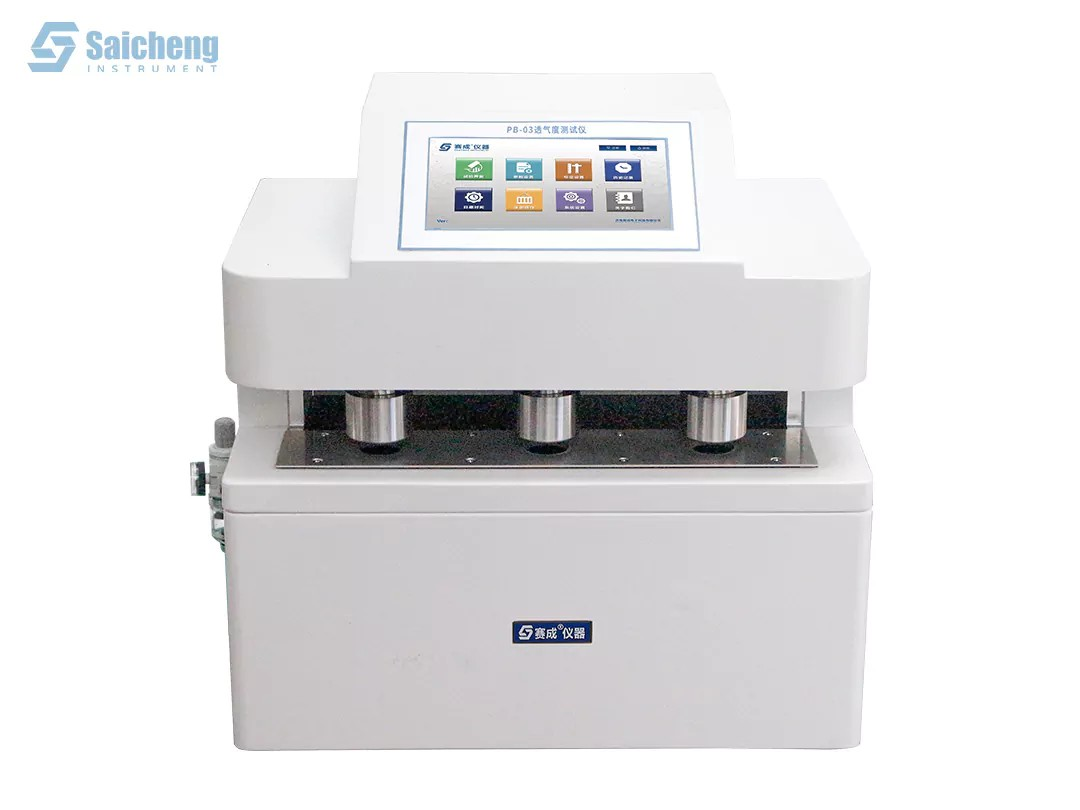

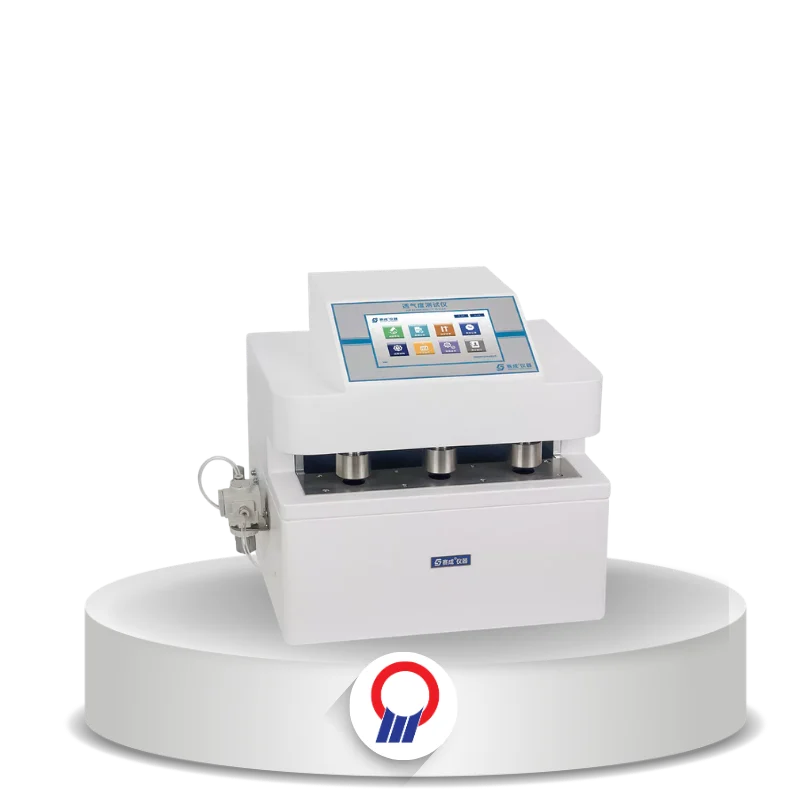

Battery Diaphragms Gas Permeability Tester PB-03
Battery Diaphragms Gas Permeability Tester PB-03 - Image 2

Battery Diaphragms Gas Permeability Tester PB-03

Alat Uji Permeabilitas Gas Diafragma Baterai didasarkan pada metode tekanan diferensial (Tipe Oken), dan secara khusus dirancang untuk mengukur permeabilitas udara pada diafragma baterai, film bernapas, serta produk polimer terkait lainnya.

Beli Produk Sekarang

WhatsApp
Email Kami

Description

Alat Uji Permeabilitas Gas Diafragma Baterai didasarkan pada metode tekanan diferensial (Tipe Oken), dan secara khusus dirancang untuk mengukur permeabilitas udara pada diafragma baterai, film bernapas, serta produk polimer terkait lainnya.

Fitur

  • 7-inch color touchscreen with graphical user interface (GUI)
  • Fully automatic measurement of gas volume through the sample
  • High-precision pressure control technology, pressure accuracy is better than 0.01kPa
  • Three distinct specimens can be tested under same testing condition, delivering higher throughput while reducing the number of instruments required.
  • Clamp the specimen pneumatically
  • Automatically detects the temperature and humidity of the test environment, and can automatically record the test conditions.

Spesifikasi

Item Spesifikasi
Rentang Pengujian

10 ~ 15.000 s/100mL (Tersedia kustomisasi)

0.01 ~ 12.7 $mu m/(Pa·s)$
Resolusi Volume 0.001 mL
Akurasi Volume 1%
Rentang Tekanan 0 ~ 5 kPa
Akurasi Tekanan 0.01 kPa
Jumlah Spesimen 3
Ukuran Spesimen 40 x 40 mm
Ketebalan Spesimen 0 ~ 5 mm
Luas Area Uji Standar 6.45 $cm^2$
Gas Pengujian

Gas Kering (Dry Gas)

(Di luar lingkup pasokan)
