Automatic Cap Torque Tester NJY-H5
Saicheng

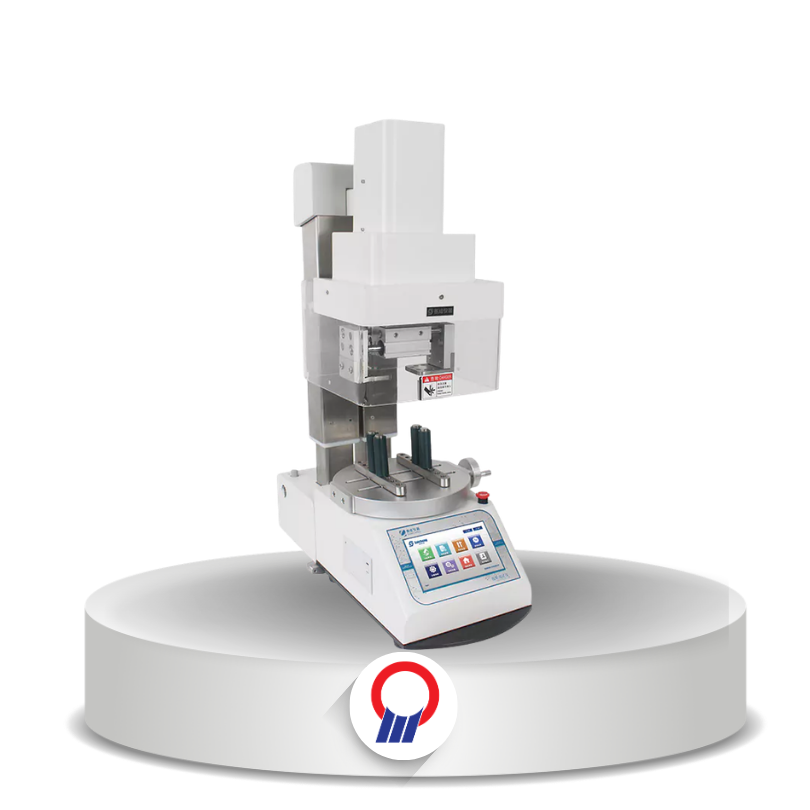

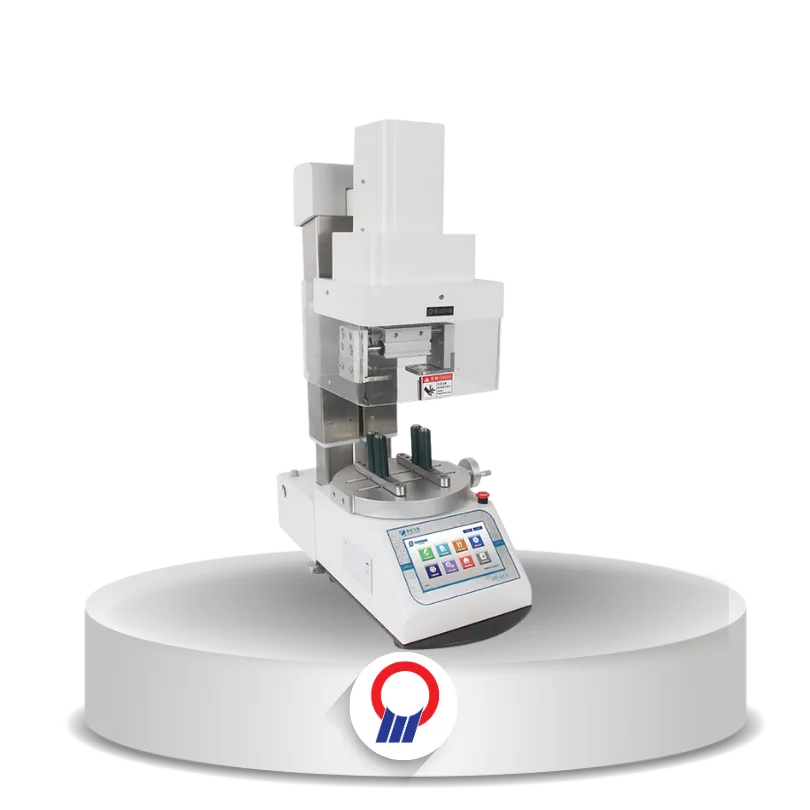

Automatic Cap Torque Tester NJY-H5

Overview

Alat uji torsi tutup botol otomatis untuk menguji nilai torsi tutup pada botol, botol minuman, botol air mineral, dan botol susu. Membuka dan mengunci tutup secara otomatis.

Fitur Utama

  • Kapasitas sensor 5 Nm (standar); 20 Nm dan 40 Nm opsional, akurasi 0,5% FS
  • Mode ganda: torsi penguncian dan torsi pembukaan (dua arah)
  • Kecepatan putar 10 r/min (dapat diatur); gaya jepit dapat diatur sesuai sampel
  • Rentang jepit badan Φ5–Φ190 mm
  • Manajemen otoritas tiga tingkat dengan data yang dapat ditelusuri
  • Layar sentuh 7 inci, printer mikro, dan USB
Tanya via WhatsApp
Merk
Saicheng
Kategori
Strength & Durability Tester

Detail Produk

Specification Value
Specification
Load Cell Capacity 5 Nm (standard); 20 Nm, 40 Nm (optional)
Accuracy 0.5% FS
Resolution 0.001 Nm
Twisting Speed 10 r/min (adjustable)
Clamp Force Adjustable according to the sample
Body Clamp Range Φ5 mm ~ Φ190 mm; Φ10 mm ~ Φ120 mm (customizable)
Data Numbers 1 ~ 999 (no upper limit with professional software)
Gas Pressure 0.4 MPa ~ 0.6 MPa (outside of supply scope)
Port Size Φ6 mm PU tubing
Power Supply AC 100-240V 50/60Hz (can be changed to local requirement)
Instrument Dimension 350 mm (W) x 620 mm (D) x 770 mm (H)
Net Weight 48 kg
Test Standards ASTM D2063, ASTM D3198, ASTM D3474, GB/T 17876, BB/T 0025, BB/T 0034, YBB00392003-2015
Configuration
Standard Instrument, micro printer
Optional Professional software, 485 communication cable, non-standard fixture
