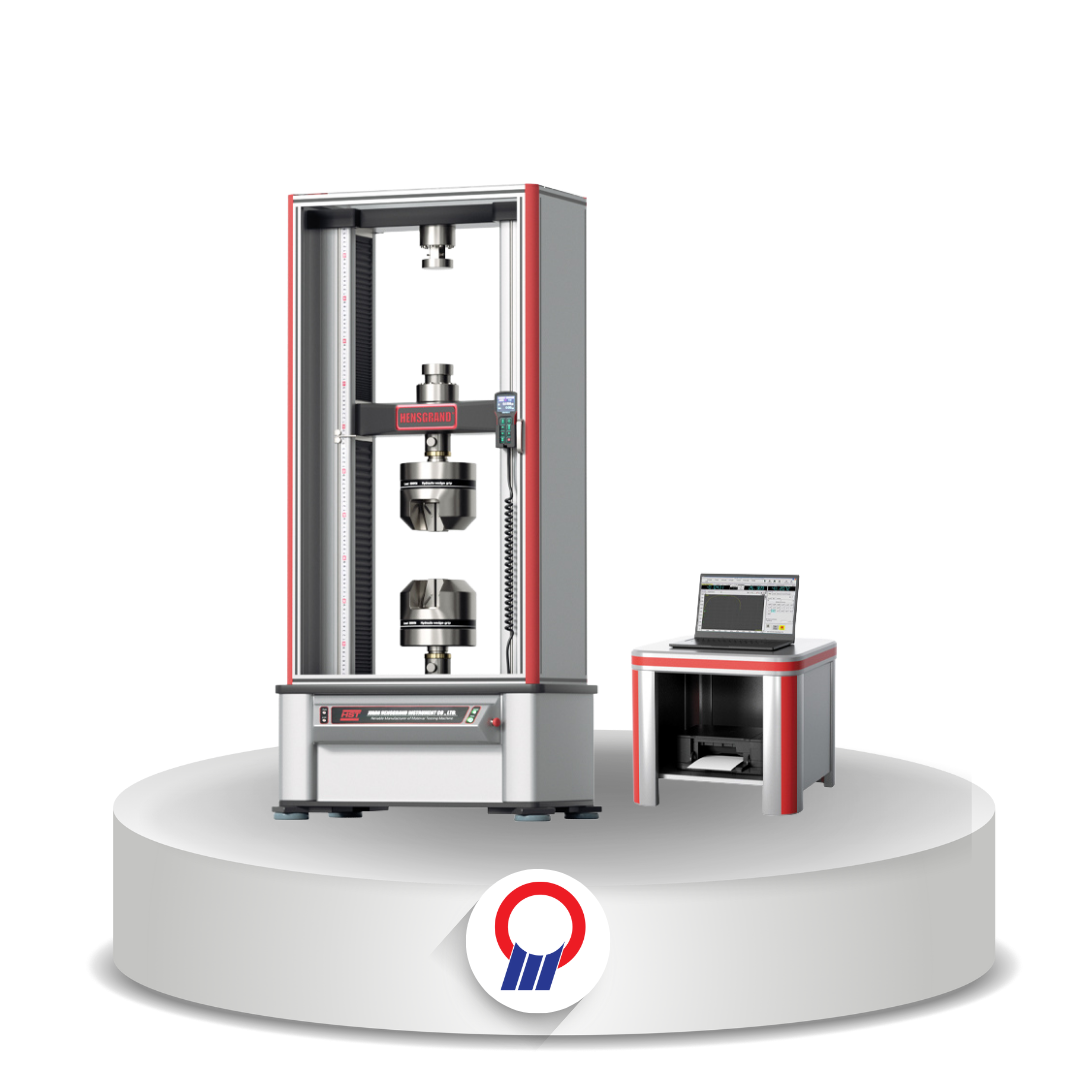

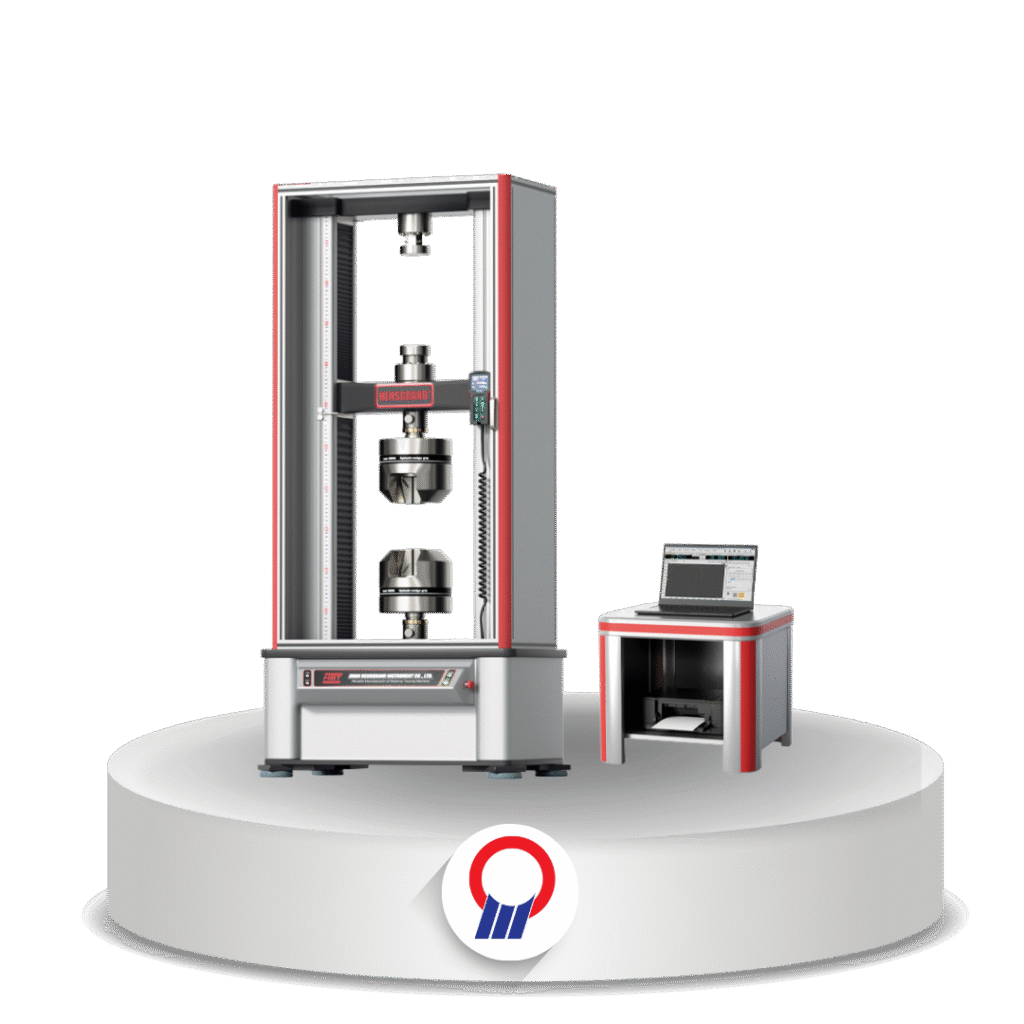

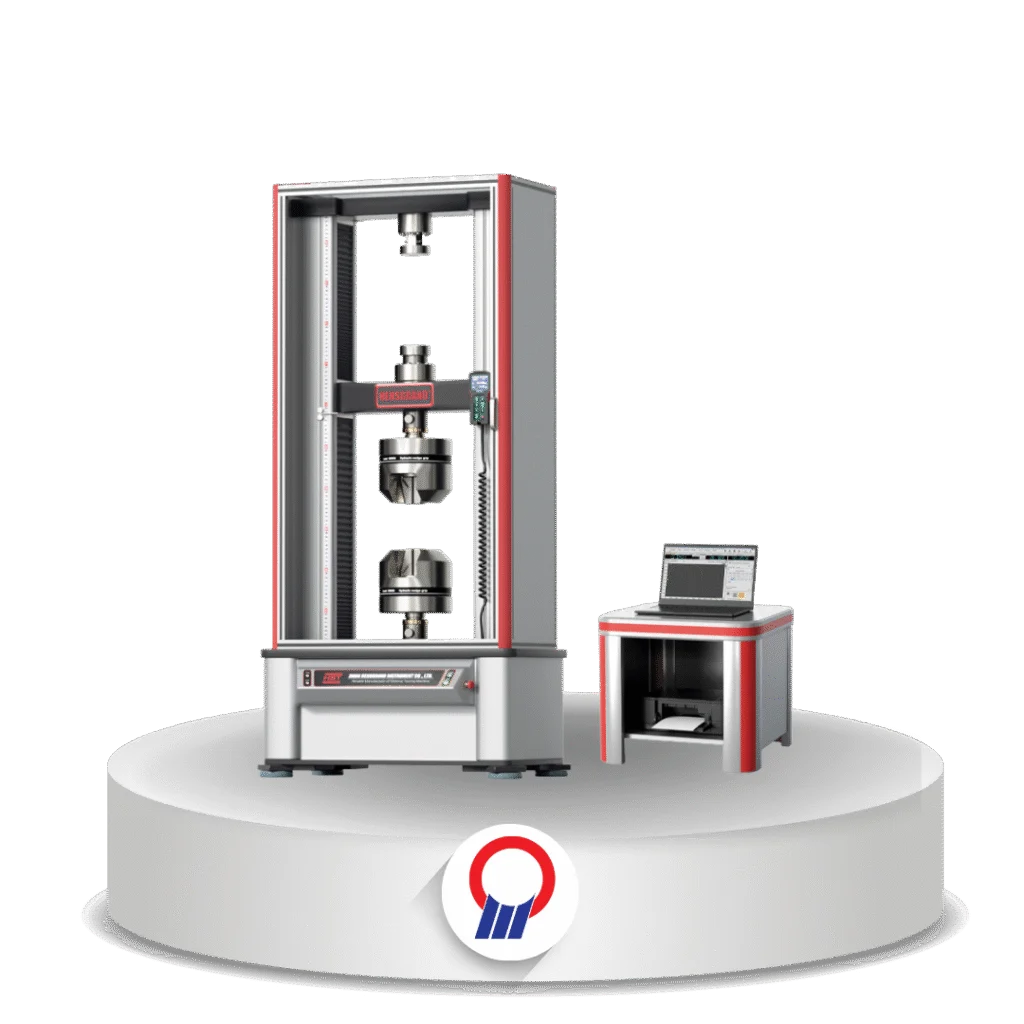

200KN 300KN 20Ton 30Ton Computer Control Electronic Universal Testing Machine
HST

200KN 300KN 20Ton 30Ton Computer Control Electronic Universal Testing Machine

Overview

Mesin uji universal elektromekanis (komputer) untuk uji tarik, tekan, lentur, geser, sobek, dan kupas dengan kendali loop tertutup gaya, perpindahan, atau deformasi.

Fitur Utama

  • Kapasitas 200 kN dan 300 kN
  • Kelas akurasi gaya 0.5, resolusi gaya 1/500000
  • Resolusi perpindahan 0,01 mm; kesalahan perpindahan dalam ±0,5% dari beban
  • Kecepatan 0,001–500 mm/menit (stepless)
  • Ruang tarik 700 mm, ruang tekan 1.100 mm, lebar uji 600 mm (dapat dikustomisasi)
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WDW-200E, WDW-300E
Max. Load 200 kN, 300 kN
Load Accuracy Class 0.5
Load Range 0.2% ~ 100% F·S
Load Resolution 1/500000
Resolution of Deformation 0.04 µm
Accuracy of Displacement Within ±0.5% of indicating load
Resolution of Displacement 0.01 mm
Test Speed (mm/min) 0.001-500 (stepless)
Tensile Space (mm) 700 (can be customized)
Compression Space (mm) 1100 (can be customized)
Test Width (mm) 600 (can be customized)
Beam Travel Distance (mm) 1100
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Standards ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, GB 16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13-22-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006, ASTM C165, EN 826, EN 1606, EN 1607, EN 12430, etc.
