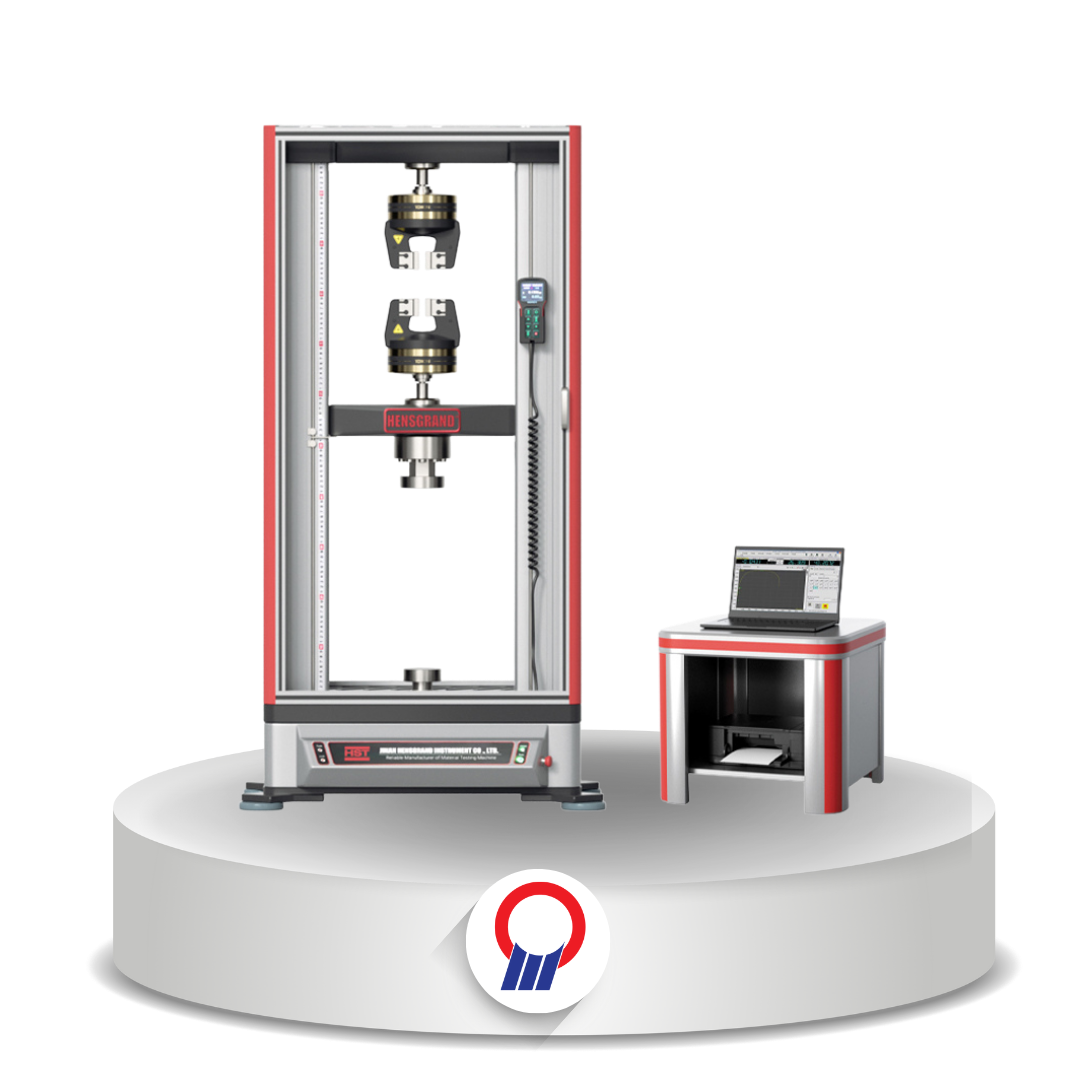

200/300KN Metal Material Universal Electronic Tensile Testing Machine With Hydraulic Flat Push Grip
HST

200/300KN Metal Material Universal Electronic Tensile Testing Machine With Hydraulic Flat Push Grip

Overview

Mesin uji tarik elektronik WDW-200EJ / WDW-300EJ (200 dan 300 kN) dengan penjepit hidrolik flat push untuk bahan logam.

Fitur Utama

  • Kapasitas 200 kN dan 300 kN, kelas akurasi 0,5
  • Penjepit hidrolik flat push
  • Kecepatan uji 0,001–500 mm/menit (stepless)
  • Ruang tarik 700 mm, ruang tekan 1.100 mm, lebar uji 600 mm (dapat dikustomisasi)
  • Standar ASTM A370, ASTM E4, ASTM E8, ISO 6892, ISO 7500-1, dan lainnya
Tanya via WhatsApp
Merk
HST
Kategori
Hydraulic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models HST WDW-200EJ, WDW-300EJ
Max. Load 200 kN, 300 kN
Load Accuracy Class 0.5
Load Range 0.2% ~ 100% F·S
Load Resolution 1/500000
Resolution of Deformation 0.04 µm
Accuracy of Displacement Within ±0.5% of indicating load
Resolution of Displacement 0.01 mm
Test Speed 0.001 ~ 500 mm/min (stepless arbitrary setting)
Speed Accuracy Within ±1% / ±0.5% of set speed
Tensile Space 700 mm (can be customized)
Compression Space 1100 mm (can be customized)
Test Width 600 mm (can be customized)
Beam Travel Distance 1100 mm
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Grips Hydraulic flat push grip
Standards ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO 6892, ISO 7438, ISO 7500-1, EN 10002-4, GB/T 228-2002, GB 16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13-22-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006, ASTM C165, EN 826, EN 1606, EN 1607, EN 12430, etc.
