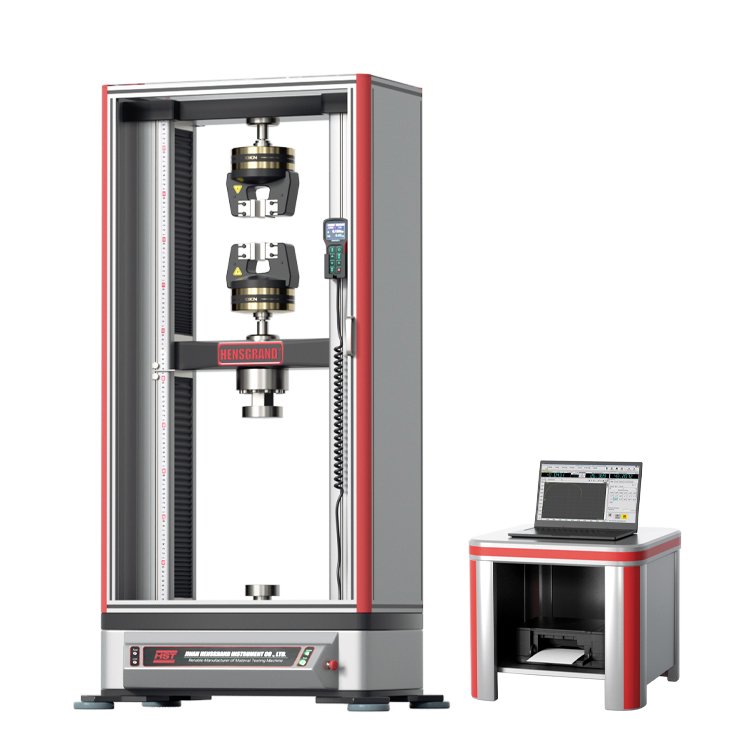

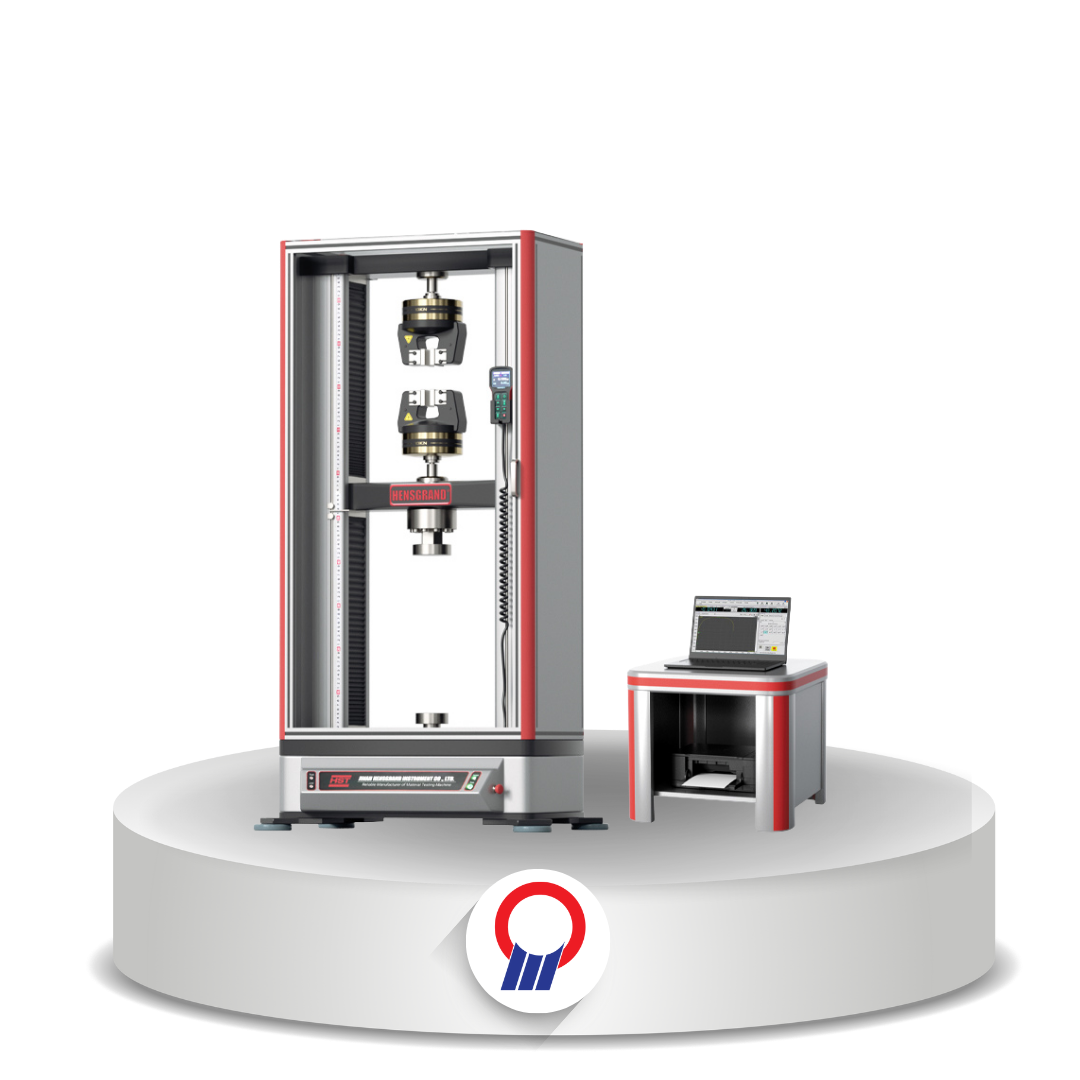

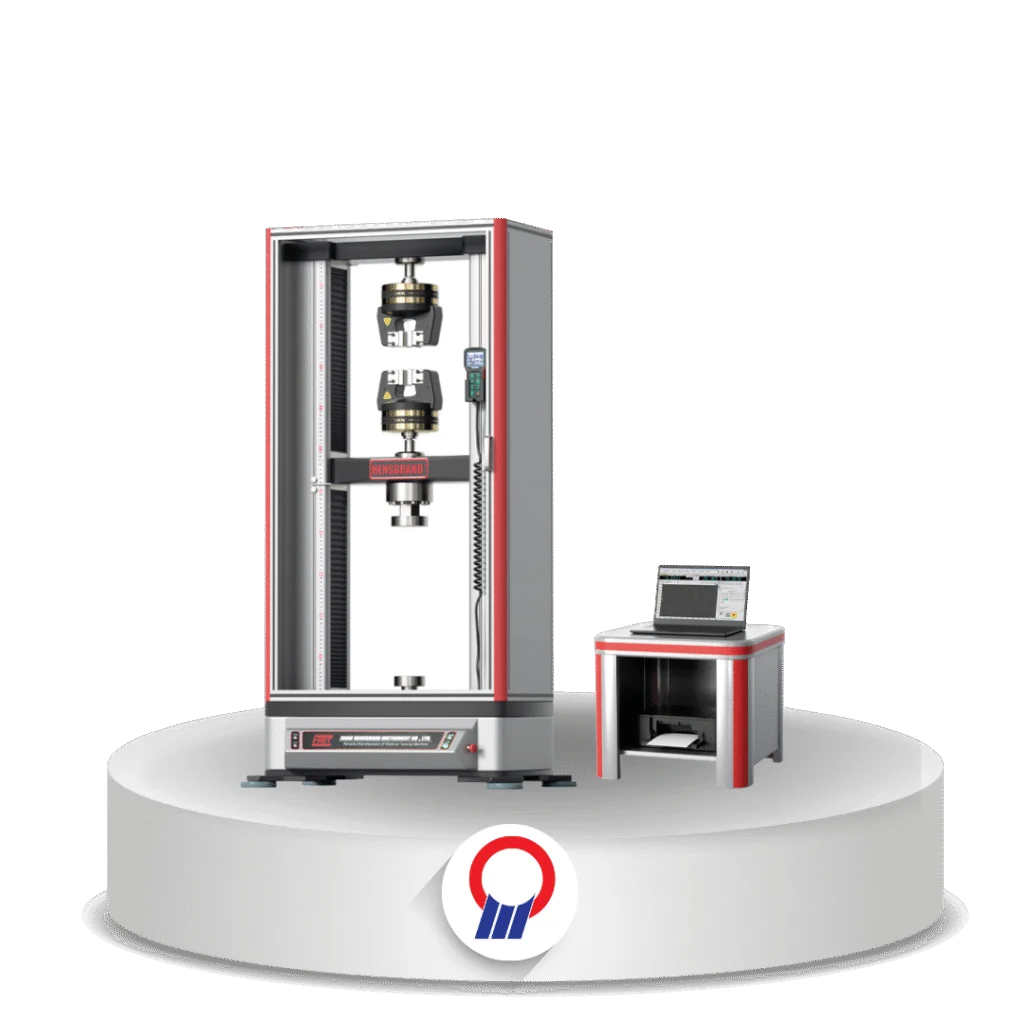

10/30/50/100KN Computer Control Geotextile Material Tearing Tensile Strength Test Machine
HST

10/30/50/100KN Computer Control Geotextile Material Tearing Tensile Strength Test Machine

Overview

Mesin uji universal elektromekanis (komputer) untuk uji tarik, tekan, lentur, geser, sobek, dan kupas dengan kendali loop tertutup gaya, perpindahan, atau deformasi. Untuk uji kekuatan tarik dan sobek geotekstil.

Fitur Utama

  • Kapasitas 5 kN, 10 kN, 20 kN, 30 kN dan 50 kN
  • Kelas akurasi gaya 0.5, resolusi gaya 1/500000
  • Resolusi perpindahan 0,01 mm; kesalahan perpindahan dalam ±0,5% dari beban
  • Standar geotekstil: ASTM D4595 (wide width), D4632 (grab), D6241 (puncture CBR statis), D4533 (sobek trapezoid)
Tanya via WhatsApp
Merk
HST
Kategori
Electronic Universal Testing Machine

Detail Produk

Specification Value
Specification
Models WDW-5E, WDW-10E, WDW-20E, WDW-30E, WDW-50E
Max. Load 5 kN, 10 kN, 20 kN, 30 kN, 50 kN
Load Accuracy Class 0.5
Load Range 0.2% ~ 100% F·S
Load Resolution 1/500000
Resolution of Deformation 0.04 µm
Accuracy of Displacement Within ±0.5% of indicating load
Resolution of Displacement 0.01 mm
Test Speed (mm/min) 0.05-1000 (stepless)
Tensile Space (mm) WDW-5E: 670
WDW-10E: 670
WDW-20E: 670
WDW-30E: 770
WDW-50E: 770
Compression Space (mm) WDW-5E: 900
WDW-10E: 900
WDW-20E: 900
WDW-30E: 1000
WDW-50E: 1000
Test Width (mm) WDW-5E: 450
WDW-10E: 450
WDW-20E: 450
WDW-30E: 550
WDW-50E: 550
Beam Travel Distance (mm) WDW-5E: 1000
WDW-10E: 1000
WDW-20E: 1000
WDW-30E: 1100
WDW-50E: 1100
Power Supply AC 220V ±10%, 50Hz/60Hz (can be customized)
Standards ASTM D4595, ASTM D4632, ASTM D6241, ASTM D4533
